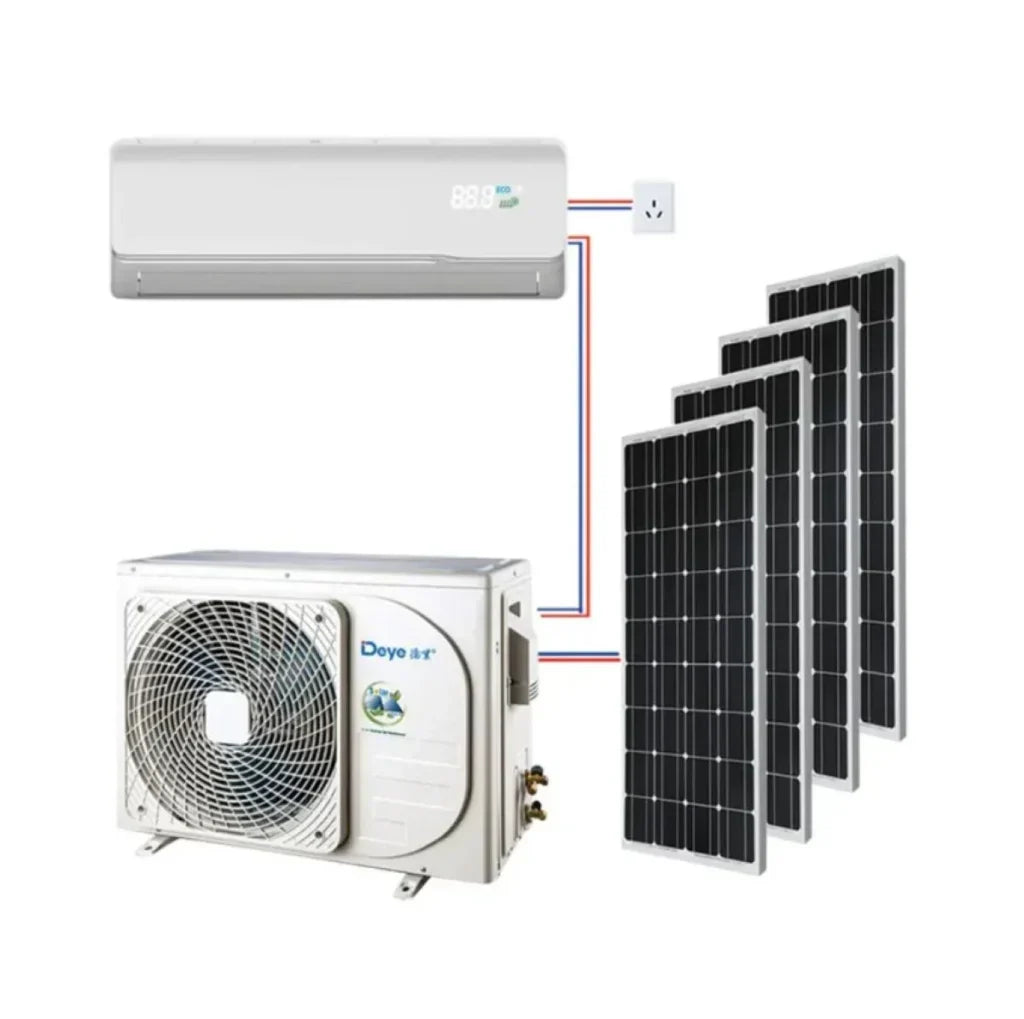

Keep your home cool in summer and warm in winter with this energy-efficient hybrid air conditioner. The Deye Hybrid ACDC Solar Air Conditioner requires no batteries and only a few solar panels to significantly reduce your energy bills.
During daylight hours-when cooling is needed the most-it can operate partially or fully on solar power, making it extremely cost-effective and eco-friendly. At night, it continues to save energy by drawing minimal grid power.
Smart Features
Daily and weekly programmable timers
Real-time performance monitoring
AC & DC power consumption tracking
Key Features
Available in 12,000 to 24,000 BTU models
100% energy savings during daytime (solar-only operation)
Full DC operation with high-performance T3 compressor
Configurable AC grid power limiter (0–600W)
Supports AC, DC, and hybrid AC+DC modes (auto balance)
No inverter, battery, or charge controller required
Wide operating temperature range: -10℃ to 58℃
Long warranty coverage for peace of mind
Technical Specifications
Model: 12,000 BTU
AC Power Supply: 1Ph 208V–240V / 50–60Hz
DC Power Input (PV in Series): 80–380V
DC Power Current: ≤12A
Advised Solar Panel Setup: 3–4 × 330W in series
Cooling Capacity: 3510W (900–3900W) / 12,000 BTU (3000–13300 BTU)
Cooling Power Input: 940W (190–1270W)
Heating Capacity: 4100W (1000–4500W)
Heating Power Input: 1170W (190–1700W)
EER: 3.75 W/W (12.75 BTU/W)
COP: 3.50 W/W (11.95 BTU/W)
Dehumidification Capacity: 1.3 L/h
Compressor Model: WHP04200
Compressor Type: 2× Rotary Inverter
Compressor Brand: Highly
Indoor Fan Motor: BLDC-15W
Indoor Noise Level (Turbo): 42.5 dB(A)
Indoor Unit Dimensions (W×H×D): 840 × 205 × 295 mm
Indoor Packing Dimensions: 920 × 290 × 360 mm
Indoor Unit Weight (Net/Gross): 9.0 / 12.5 kg
Outdoor Fan Motor: BLDC-40W
Outdoor Noise Level: 52 dB(A)
Outdoor Unit Dimensions (W×H×D): 802 × 564 × 323 mm
Outdoor Packing Dimensions: 910 × 622 × 405 mm
Outdoor Unit Weight (Net/Gross): 33.5 / 37.5 kg
Refrigerant Type: R410A
Max Design Pressure: 4.3 / 1.5 MPa
Refrigerant Pipe Size (Gas / Liquid): 3/8″ / 1/4″
Max Refrigerant Pipe Length: 15 m
Max Height Difference: 8 m
Included Copper Pipe Length: 3 m
Connection Wire Length: 4 m
Electronic Expansion Valve: Yes
Loading Quantity (40″ HQ / 20″ GP): 200 / 85 sets
