Deye 12kw Hybrid Inverter 3 Phase (SUN-12K-SG04LP3)

R 25,390.00 ZAR

Shipping calculated at checkout.

60 people are viewing the right now

I agree with Terms & Conditions

Wishlist

Compare

Subcribe To Back In Stock Notification

Thanks! We will send you a notification when the variant becomes available!

Vendor:

Pro Light Solar

Availability:

In stock

Category:

Inverters

Free Shipping & Returns:

Estimated Delivery: Jun 10 - Jun 16

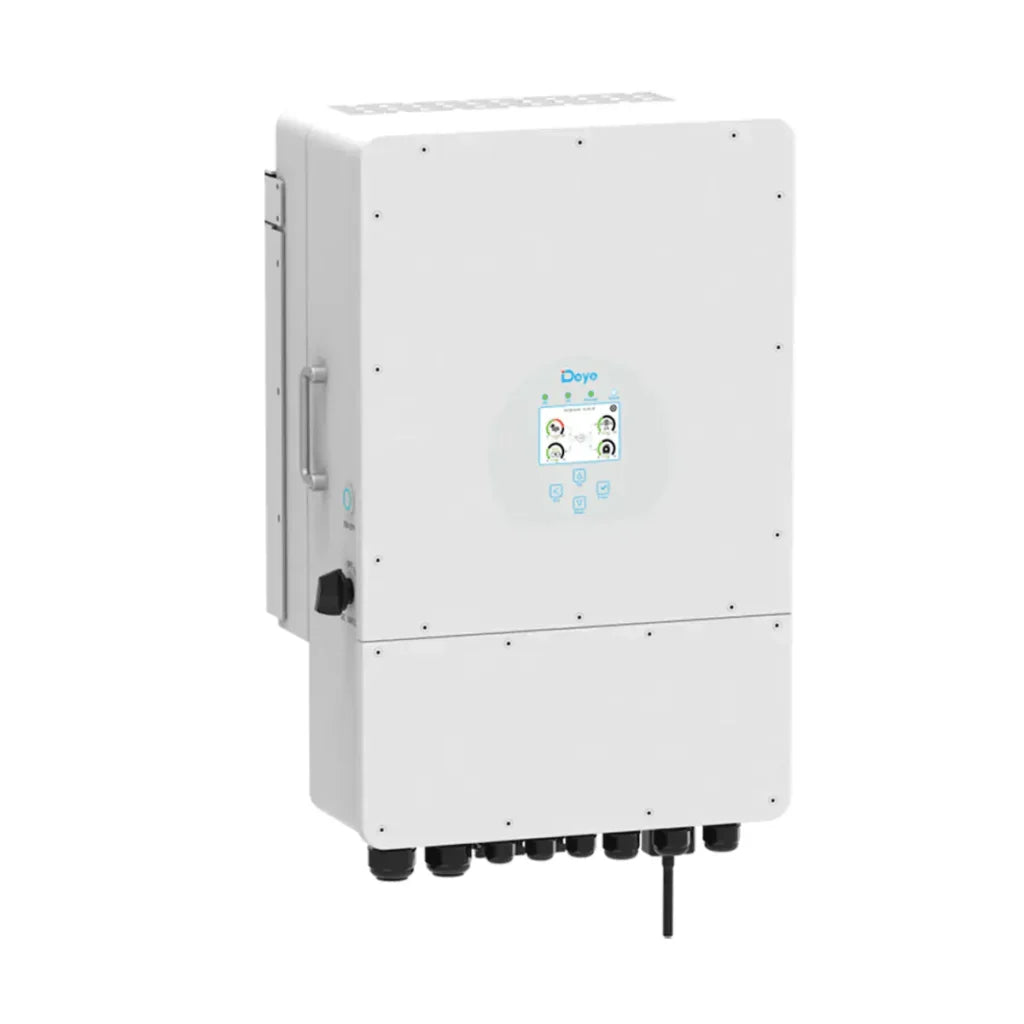

Deye 12kw Hybrid Inverter 3 Phase (SUN-12K-SG04LP3)

R 25,390.00 ZAR

Includes: Wi-Fi Dongle + BMS Communication Cable

Higer yields.

Improve self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT design, Max. efficiency of 97.6%.

User-friendly.

LCD Touch screen and buttons, easy operation.
Compatible with lithium-ion battery and lead acid battery.
Web browser and mobile App monitoring supported.

Reliable.

PV lighting protection, Anti-islanding protection, Leakage current protection etc.
Support store energy from DG when needed, ensure the system working within 7*24H.
IP65 protection degree, adapt to indoor and outdoor using.
Automatically switch from on-grid to off-grid mode within 5ms.
Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

Programmable charging and discharging schedule.
Both wind turbines and solar panels can be connected as DC input power.
Max. 16 units can be paralleled for higher system power.
Retrofitting of existing solar system to energy storage system.

Features:

100% unbalanced output, each phase Max. output up to 50% rated power.
48V low voltage battery, transformer isolation design.
6 time periods for battery charging/discharging.
Max. charging/discharging current of 240A.
Frequency droop control.
DC couple and AC couple to retrofit existing solar system.
Support storing energy from diesel generator

Battery Input Data

Battery Type: Lead-acid or Li-lon
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 240A
Max. Discharging Current (A): 240A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W): 15600W.
PV input Voltage (V): 550V (150V-800V).
MPPT Range (V): 200-650V.
Start-up Voltage (V): 160V.
PV Input Current (A): 25A + 125.5A.
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 2+1.

AC Output Data

Rated AC Output and UPS Power (W): 12000W
Max AC Output Power (W): 13200W
Peak Power(off-grid): 2 times of rated power, 10 S.
AC Output Rated Current(A): 18A
Max.AC Current(A): 27A
Max Continuous AC Pass-through(A): 50A.
Output Frequency and Voltage: 50/60Hz; 230/400Vac (Three Phase)
Grid Type: Three Phase
Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

Max. Efficiency: 97.60%
Euro Efficiency: 97.00%
MPPT Efficiency: 99.90%

Protection

PV Arc Fault Detection: Integrated (Except European Type)
PV Input Lightning Protection: Integrated
Anti -islanding Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
Insulation Resistor Detection: Integrated
Residual Current Monitoring Unit: Integrated
Output over Current Protection: Integrated
Output Shorted Protection: Integrated
Output over Voltage Protection: Integrated

Certifications and Standards

Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
Safety Regulation: IEC62109-1, IEC62109-2
EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

Operating Temperature Range ( C ): -25—60 C , >45 C Derating
Cooling: Fan
Noise (dB): <30
Communication with BMS: RS485; CAN
Weight (kg): 37
Size (mm): 422W X 685H X 281mm
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 years
