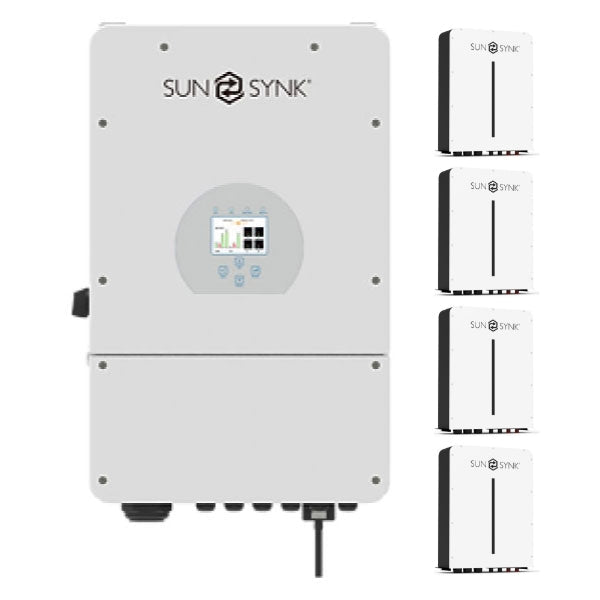

Sunsynk 16kW Inverter & Battery Combo Deal – 1 X Sunsynk 16kW Inverter & 4 X Sunsynk 5kW 100Ah 51.2V Lithium Ion Batteries

R 84,990.00 ZAR

Shipping calculated at checkout.

31 people are viewing the right now

I agree with Terms & Conditions

Wishlist

Compare

Subcribe To Back In Stock Notification

Thanks! We will send you a notification when the variant becomes available!

Vendor:

Pro Light Solar

Availability:

In stock

Category:

Solar Combos

Free Shipping & Returns:

Estimated Delivery: Jun 10 - Jun 16

Sunsynk 16kW Inverter & Battery Combo Deal – 1 X Sunsynk 16kW Inverter & 4 X Sunsynk 5kW 100Ah 51.2V Lithium Ion Batteries

R 84,990.00 ZAR

Sunsynk 16kW Inverter & Battery Combo Deal – 1 X Sunsynk 16kW Inverter & 4 X Sunsynk 5kW 100Ah 51.2V Lithium Ion Batteries
Whats Included:
- 1 x SUNSYNK 16kW Hybrid Inverter (1 Phase) – SUNSYNK MAX
- 4 x SUNSYNK 5kW 100Ah LiFePo4 Lithium Ion Battery – SUNSYNK-L5.1-IP20

More Details:

Sunsynk 16kW Hybrid Inverter (1 Phase)
- Model SUNSYNK MAX
- Wi-Fi Ready – works via Sunsynk App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- The Most Powerful Low-voltage Inverter In The World.
- Achieves a Maximum Output Power of 16kW & Battery Charge Current of 300A
- Manages Power-flow from multiple sources such as Solar, Main Power (Grid) & Generators, then effectively storing & releasing power as & when utilities require.
- Colourful Touch LCD
- Storing energy from diesel generator supported.
- Wi-Fi & GSM monitoring supported.
- Equipped with Visual power flow screen.
- Parallel/multi invert function grid-tied & off-grid.
- Grid Type: Single-Phase.
- Protection Degree: IP65
- Noise Level: <30dB
- Maximum Charge & Discharge Current: 300A
- Battery Charging Strategy: Self-Adaptation to BMS
- Maximum DC Input Power: 18000W
- MPPT Range: 250-450V
- Start-up Voltage: 150V
- Maximum On-Grid AC Power: 16000W
- Maximum Off-Grid AC Power: 13000W
- AC Output Rated Current: 65A
- Maximum AC Current: 70A
- Frequency Range: 45-55Hz
- Voltage Range: 211-264V
- Maximum Efficiency: 97.60%
- MPPT Efficiency: 99.90%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 43-60V
- Communication with BMS: CAN/RS485
- Fan Cooling
- Operation Temperature: -25°C to 55°C
- Installation Type: Wall Mounted.
- Weight: 34.5Kg
- Dimensions (W x H x D): 422 x 702 x 281 mm
- 5 Year Product Warranty (Extended to 10 Years if paired with Sunsynk Battery).
- Recommended Solar Panel Configuration:
  - Min 5 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)
  - First MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)
  - Second MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)
  - Third MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)
  - Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
Sunsynk 5kW 100Ah LiFePo4 Lithium Ion Battery
- Model SUNSYNK-L5.1-IP20
- Convenient Quick Installation.
- Safe & Reliable.
- Eco-Friendly.
- Flexible Configuration.
- Equipped with Intelligent BMS.
- Wide Temperature.
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 4.61V
- Energy: 5.12kWh
- Usable Energy: 4.61kWh
- Recommended Charge/Discharge Current: 50A
- Maximum Charge/Discharge Current: 100A
- Peak Charge/Discharge Current (2mins, 25°): 150A
- IP Rating of Enclosure: IP20
- Working Temperature: 0-55°C (Charge); -20-55°C (Discharge)
- Storage Temperature: 0-35°C
- Altitude: ≤2000m
- Communication Port: CAN2.0; RS485
- Installation Type: Wall Mounted or 19-inch Standard Cabinet
- Weight: 50Kg
- Dimensions (W x D x H): 440 x 640 x 140 mm
- 5 Year Limited Product Warranty.
Does Not Include Power Cables & Communication Cables (Sold Separately)
Refer To Brochure For Detailed Product Specifications.
Product might vary from depicted images.
Free Delivery Nationwide – South Africa
