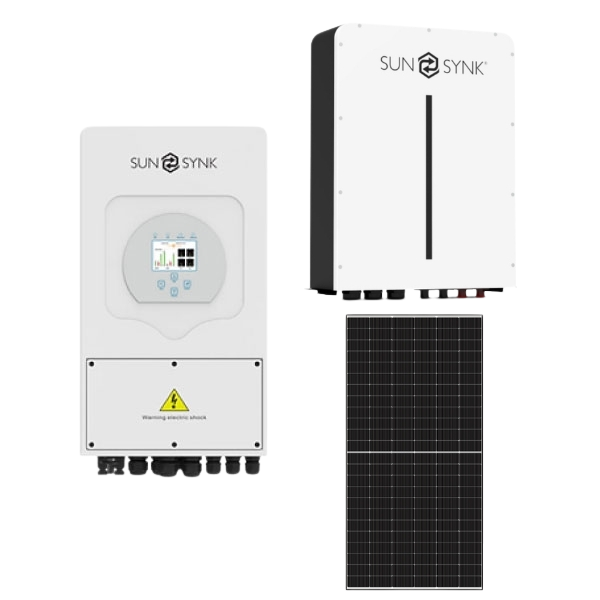

Sunsynk 5kW Solar, Inverter & Battery Combo Deal – 1 X Sunsynk 5kW Inverter, 1 X 5kW Sunsynk Lithium Ion Battery & 6 X Sunova 585W Solar Panels

R 29,899.00 ZAR

Shipping calculated at checkout.

69 people are viewing the right now

I agree with Terms & Conditions

Wishlist

Compare

Subcribe To Back In Stock Notification

Thanks! We will send you a notification when the variant becomes available!

Vendor:

Pro Light Solar

Availability:

In stock

Category:

Solar Combos

Free Shipping & Returns:

Estimated Delivery: Jun 10 - Jun 16

Sunsynk 5kW Solar, Inverter & Battery Combo Deal – 1 X Sunsynk 5kW Inverter, 1 X 5kW Sunsynk Lithium Ion Battery & 6 X Sunova 585W Solar Panels

R 29,899.00 ZAR

Sunsynk 5kW Solar, Inverter & Battery Combo Deal – 1 X Sunsynk 5kW Inverter, 1 X 5kW Sunsynk Lithium Ion Battery & 6 X Sunova 585W Solar Panels
Whats Included:
- 6 x Sunova Solar 585W 144 Cell Tangra™ M Solar Panel – SS-585-72MDH(T)
- 1 x SUNSYNK 5kW Hybrid Parity Inverter (1 Phase) – SUNSYNK-5K-SG02LP1
- 1 x SUNSYNK 5kW 100Ah LiFePo4 Lithium Ion Battery – SUNSYNK-L5.1-IP20

More Details:

Sunova Solar 585W 144 Cell Tangra™ M Solar Panel
- Model SS-585-72MDH(T)
- Half-Cut Cell Technology – Divides panel in half, allowing top & bottom to run independently generating more energy even when half is shaded.
- Combines creative technology effectively & extremely improves the module efficiency & power output.
- 585W Solar Panel.
- Equipped with 144 Cells.
- 30 Year Lifespan Delivers 10-30% More Power compared with Conventional P-Type Modules.
- The Natural Lack of LID in the N-Type Solar Cell can Increase Power Generation.
- Excellent Low Irradiance Performance.
- Better Light Trapping and Current Collection to Improve Module Power Output and Reliability.
- Industry-Leading, Lowest Thermal Coefficient.
- Optimized Electrical Design and Lower Operating Current for Reduced Hot Spot Loss and Better Temperature.
- Certified to withstand 2400 Pa of Wind Load and 5400 Pa of Snow Load.
- 100% Triple EL Test, Which Greatly Reduces the Hidden Cracks Rate.
- Number of Cells: 144 Cells
- Cell Type: N-Type Monocrystalline.
- Glass: Tempered, 3.2mm AR, High Transmittance, Low Iron.
- Silver/Black Anodized Aluminium Alloy Frame.
- Junction Box: IP68, 3 Bypass Diodes.
- Connector: MC4 Compatible.
- Mechanical Load: Wind Load: 5400 Pa; Wind Load: 2400 Pa
- Maximum Power: 585W (STC) & 436W (NOCT)
- Open-Circuit Voltage: 52.09V (STC) & 49.17V (NOCT)
- Short-Circuit Current: 13.68A (STC) & 11.05A (NOCT)
- Maximum Power Voltage: 44.61V (STC) & 41.76V (NOCT)
- Maximum Power Current: 13.12A (STC) & 10.44A (NOCT)
- Module Efficiency: 22.60%
- Power Tolerance: 0,+5W
- Maximum System Voltage: 1500V
- Maximum Rated Fuse Current: 25A
- Current Operating Temperature: -40°C to 85°C
- Comprehensive Certificates: ISO 9001/ISO 14001/ISO 45001/SA 8000
- Weight: 27.2Kg
- Dimensions (L x W x H): 2278 x 1134 x 30 mm
- Mounting Kits & Accessories Not Included – Sold Separately.
- 15 Year Limited Product Warranty. T & C’s Apply
SUNSYNK 5kW Hybrid Parity Inverter
- Model SUNSYNK-5K-SG02LP1
- Wi-Fi Ready – works via Sunsynk App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- The Synsynk Hybrid Parity Inverter is a Highly Efficient Power Management Tool.
- Manages Power Flow from multiple sources such as Solar, Main Electrical Grids & Generator, then effectively storing & releasing electric power as the utilities require.
- Easy & Simple to Understand Display.
- Wi-Fi & GSM monitoring supported.
- Equipped with Visual power flow screen.
- Built-In 2 strings of MPP trackers.
- Smart settable 3-stage MPPT charging – optimized battery performance.
- Auxiliary load function.
- Parallel/multi invert function grid-tied & off-grid.
- 220V Single Phase, Pure Sinewave Inverter.
- Grid Type: Split Phase, 2/3 Phase, Single Phase
- Protection Degree: IP65
- Noise Level: <30dB
- Maximum Charge & Discharge Current: 120A
- Battery Charging Strategy: Self-Adaptation to BMS
- Maximum DC Input Power: 6500W
- MPPT Range: 125-425V
- 2 x MPPT
- Start-up Voltage: 150V
- AC Output & UPS Power: 5000W
- Maximum AC Power: 5500W
- AC Output Rated Current: 20.8A
- Maximum AC Output Current: 24A
- Maximum Efficiency: 97.60%
- MPPT Efficiency: 96.50%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 40-60V
- Communication with BMS: CAN/RS485
- Fan Cooling
- Operation Temperature: -25°C to 60°C
- Installation Type: Wall Mounted.
- Maximum Altitude: 4000m
- Weight: 32Kg
- Dimensions (L x W x H): 670 x 420 x 233 mm
- 5 Year Product Warranty (Extended to 10 Years if paired with Sunsynk Battery). T & C’s Apply
- Recommended Solar Panel Configuration:
  - Min 3 Panels – Max 14 Panels (Panel Size: 180W to 480W Panels) (7 Panels per MPPT)
  - Min 3 Panels – Max 10 Panels (Panel Size: 180W to 560W Panels) (5 Panels per MPPT)
  - Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
SUNSYNK 5kW 100Ah LiFePo4 Lithium Ion Battery
- Model SUNSYNK-L5.1-IP20
- Convenient Quick Installation.
- Safe & Reliable.
- Eco-Friendly.
- Flexible Configuration.
- Equipped with Intelligent BMS.
- Wide Temperature.
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 4.61V
- Energy: 5.12kWh
- Usable Energy: 4.61kWh
- Recommended Charge/Discharge Current: 50A
- Maximum Charge/Discharge Current: 100A
- Peak Charge/Discharge Current (2mins, 25°): 150A
- IP Rating of Enclosure: IP20
- Working Temperature: 0-55°C (Charge); -20-55°C (Discharge)
- Storage Temperature: 0-35°C
- Altitude: ≤2000m
- Communication Port: CAN2.0; RS485
- Installation Type: Wall Mounted or 19-inch Standard Cabinet
- Weight: 50Kg
- Dimensions (W x D x H): 440 x 640 x 140 mm
- 5 Year Limited Product Warranty
