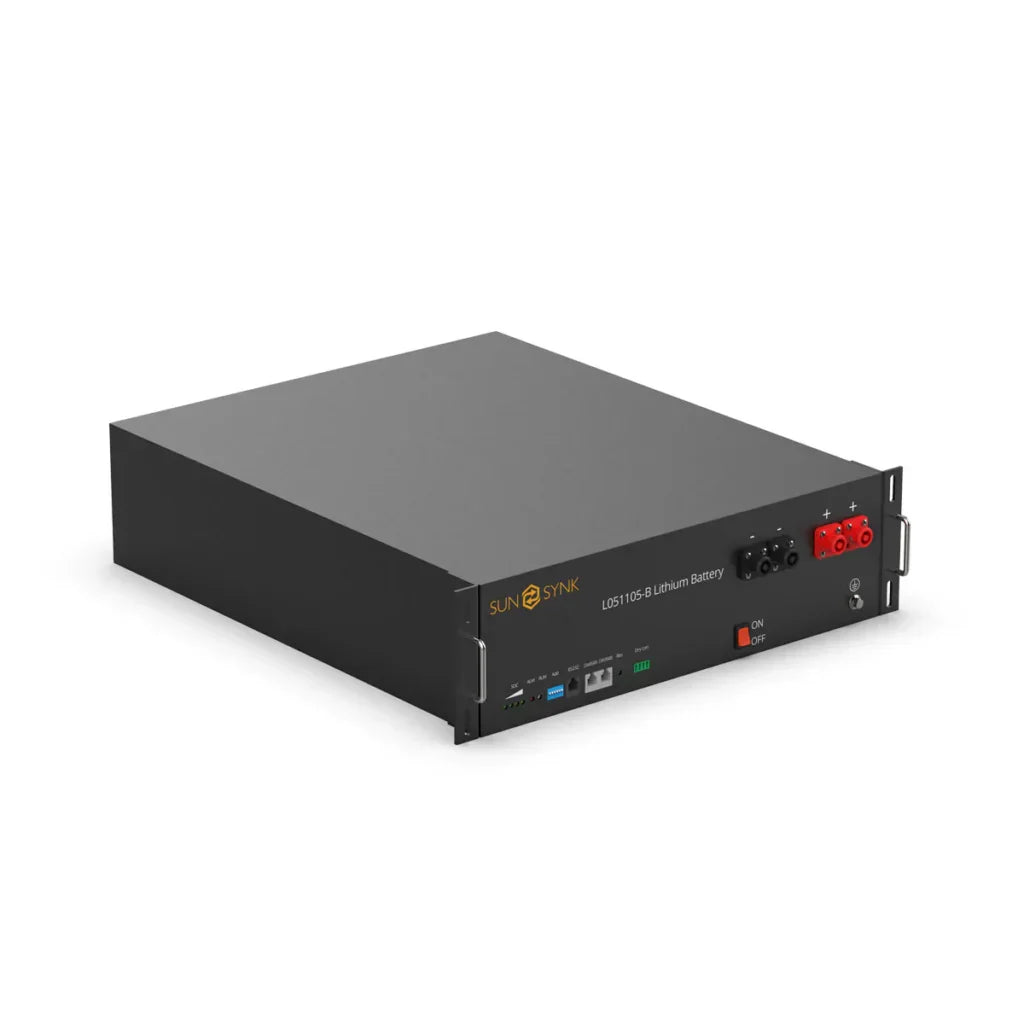

Introducing Sunsynk’s energy storage module well designed for residential UPS and off-grid applications. Cells produced by CATL, a global leader in lithium-ion battery developement and manufacturing.
Product Features
Long life span with an expected life of 10-years 5-year product warranty(non extendable) 10-year performance warranty Parallel capability of 16 units 100% Depth of Discharge 5.12kW maximum discharge power (C0.5 rated) Batteries provide excellent thermal stability and storage and also has a self-monitoring function to detect abnormalities. IP rating 40
WARNING: These batteries contain CATL cells, not to be mistaken for the SUN-BAT-BYD-5.12 which contain BYD cells. These batteries are almost identical apart from the difference in cell type, but this means you cannot mix BYD and CATL batteries in the same system.
MORE USABLE ENERGY
100% Depth of Discharge
FLEXIBLE INVESTMENT
Scalable from 5.32 to 42.56 kWh
SAFE & RELIABLE
Premium Lithium Iron Phosphate(LFP)
6000 cycles
EASY INSTALLATION
Floor Stand or Wall Mounted
QUICK COMMISSIONING
One Button ON/OFF
Automatic ID Assignment
PERFECT COMPATIBILITY
Compatible with Major PCS Brand
| Nominal Voltage | 51.2 Vdc |
| Nominal Capacity | 104Ah |
| Battery Energy 1 | 5320 Wh |
| Charge Voltage | 55.68~56.16Vdc |
| Discharge Voltage | 45.6-56.16 Vdc |
| Nominal Charge/Discharge Current | 50A |
| Nominal Charge/Discharge Power | 2500W |
| Max Charge/Discharge Current | 100A |
| Max Charge/Discharge Power | 5000W |
| Short Circuit Current | 350A |
| Display | SOC status indicator, LED indicator |
| Communication | RS232、RS485、CAN |
| Dimension( W×D×H mm ) | 450×150×533mm |
| Weight (Kg) | 45kg |
| Installation | Floor stand or Wall mounted |
| Working Temperature 2 | -20℃ ~ 60℃ |
| Storage Temperature | ≤25℃,12 months; ≤35℃,6 months; ≤45℃,3 months |
| Operating / Storage / humidity | ≤ 95%RH |
| Max Operating Altitude | ≤2000m |
| IP Rating | IP20 |
| Cell Technology | LiFePO4，Lithium Iron Phosphate |
| Cycle life 3 | 6000 Cycles @ 80% DOD / 25℃ / 0.5C，60% EOL |
| Scalability | Max 8 batteries in parallel |
| Warranty | 5 Years |
